Drain Channels

... for easier winery, brewery, and industrial plant cleaning

We design and manufacture drainage systems, constructed with channel segments that are connected with one or more drains.
All elements are made of stainless steel EN1.4301 (AISI 304) and can be built into a concrete floor. The 0.4 % channel incline (4 mm per meter) enables effective waste water drainage and prevents the accumulation of impurities within the drain channels.

We manufactue drainage systems that consist of either narrow drain channels or wide drain channels with gratings.


read more



kanal ozek
kanal sirok





KO 101_89 3M 4301 S

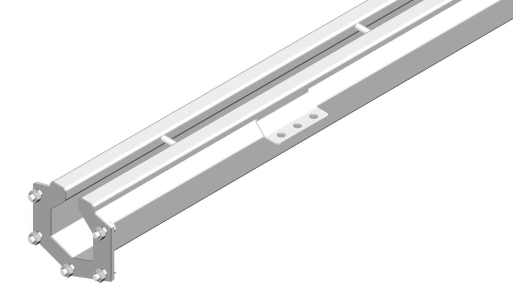

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 101_89 mm
  • Length (L): 3000 mm
  • Material: EN 1.4301/ASTM304

KO 101_93 2M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 101_93 mm
  • Length (L): 2000 mm
  • Material: EN 1.4301/ASTM304

KO 101_97 1M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 101_97 mm
  • Length (L): 1000 mm
  • Material: EN 1.4301/ASTM304

KO 77_65 3M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 77_65 mm
  • Length (L): 3000 mm
  • Material: EN 1.4301/ASTM304

KO 77_73 1M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 77_73 mm
  • Length (L): 1000 mm
  • Material: EN 1.4301/ASTM304

KO 77_79 2M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 77_79 mm
  • Length (L): 2000 mm
  • Material: EN 1.4301/ASTM304

KO 89_77 3M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 89_77 mm
  • Length (L): 3000 mm
  • Material: EN 1.4301/ASTM304

KO 89_81 2M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 89_81 mm
  • Length (L): 2000 mm
  • Material: EN 1.4301/ASTM304

KO 89_85 1M 4301 S

  • KO, narrow drainage channel - slotted type
  • Height drain (h1_h2): 89_85 mm
  • Length (L): 1000 mm
  • Material: EN 1.4301/ASTM304

KO_ZP 77 4301 S

  • KO_ZP, stop-plate
  • Height drain (h1_h2): 77 mm
  • Material: EN 1.4301/ASTM304

KO_ZP 89 4301 S

  • KO_ZP, stop-plate
  • Height drain (h1_h2): 89 mm
  • Material: EN 1.4301/ASTM304

KS 101_89 3M 4301 S

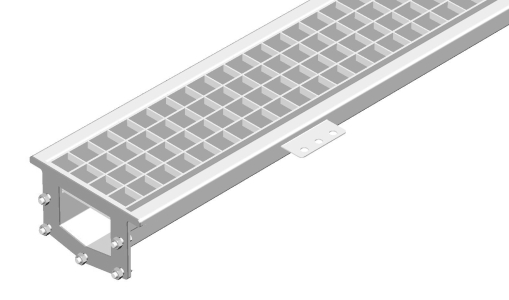

  • KS, drainage chanell, box type with grating
  • Height drain (h1_h2): 101_89 mm
  • Length (L): 3000 mm
  • Material: EN 1.4301/ASTM304

Usad'ba Myskhako // Russia

Usad'ba Myskhako // Russia

Novorossiysk

USAD'BA MYSKHAKO is a young agritourism complex located south of Novorossiysk, at the foot of Myskhako Mountain in the village of Fedotovka. Their vineyards cover an area of 80 hectares and are home to several grape varieties: Pinot Noir, Merlot, Cabernet Sauvignon, Shiraz, Pinot Gris, Chardonnay, Cabernet Franc, Petit Verdot, Riesling, and Pinot Blanc. In 2019, Usad'ba Myskhako opened their new gravity-flow winery, which is equipped with more than seventy wine tanks and fermenters, manufactured by SK Škrlj.

Read more

Want an offer?

Fill out inquiry form

We approach every project individually, with every customer's wish and need in mind. A group of experts from various fields work together to find the best solution for our investor. How can we help you? Fill out our form or call us and tell us about your plans. Together, we'll find the right answer.
