Semiautomatic Labeling Machine

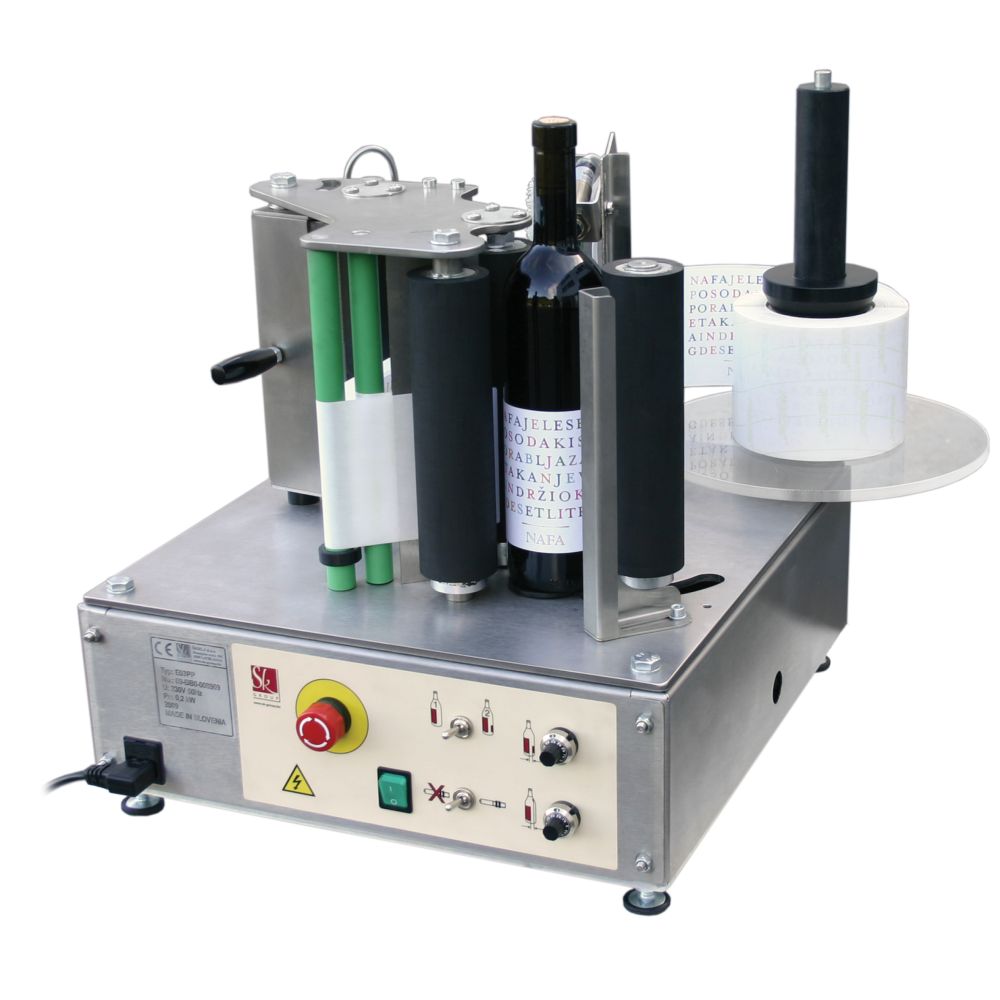

The semiautomatic labeling machine E03 is used for applying labels on bottles and other containers of similar cylindrical shape. The labeling machine's framework is made of stainless material. A robust construction and quality materials guarantee longevity, reliability, and easy maintenance of the device.


We produce two models of labeling machines. Labeling machines with higher rolls (230 mm) and labeling machines with lower label rolls (180 mm).

labelling machine

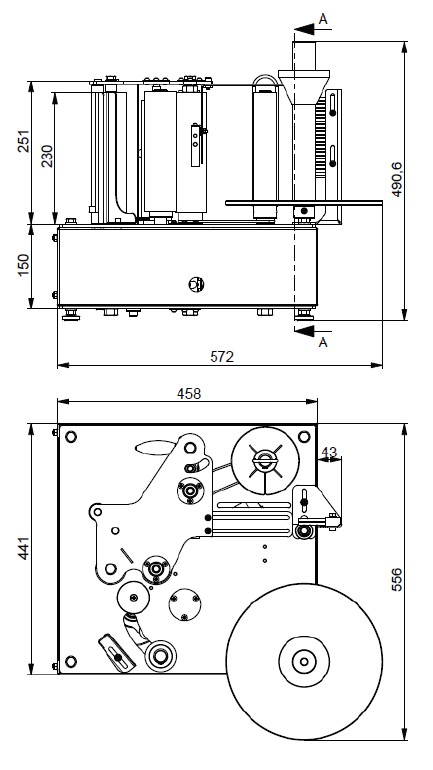

Semiautomatic labeling machine E03_230

A labeling machine with higher rolls. Suitable for applying labels on wine bottles.

Capacity

500 to 900 bottles per hour (one label)
possible application of front and back label on the same object (from one label roll)

Bottle diameter 55 - 115 mm

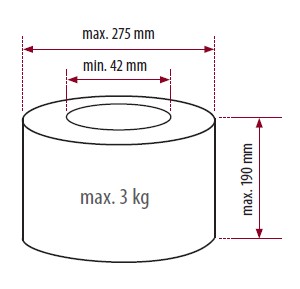

Roller height 230 mm
Max. label height 190 mm
Max. cone angles ≤ 1°
Grid connection power 0.2 kW
Voltage 230V 50/60Hz
Weight approx. 55 kg
Sound level lower than 55 Db
Optical sensor

The built-in optical sensor detects the space between two labels on the tape.

The additional optical sensor (option) detects the existing label or emblem on the bottle/object and therefore enables precise positioning of the label or the second label on the desired place on the bottle.



etiketirka
etiketirka 230

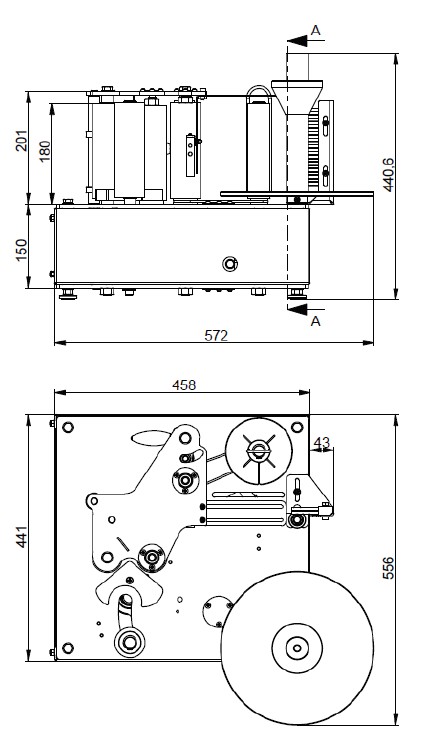

Semiautomatic labeling machine E03_180

This is a labeling machine with lower label rolls. It is suitable for labeling smaller bottles (beer, juice bottles, etc.).

Capacity 500 to 900 bottles per hour (one label)
possible application of front and back label on the same object (from one label roll)
Bottle diameter 47 - 100 mm

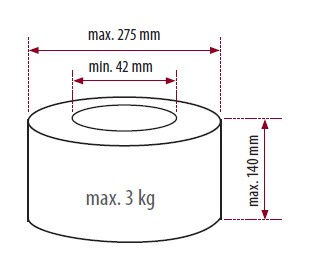

Roller height 180 mm
Max. label height 140 mm
Max. cone angles ≤ 1°
Grid connection power 0.2 kW
Voltage 230V 50/60Hz
Weight approx. 53 kg
Sound level lower than 55 Db
Optical sensor

The built-in optical sensor detects the space between two labels on the tape.

The additional optical sensor (option) detects the existing label or emblem on the bottle/object and therefore enables precise positioning of the label or the second label on the desired place on the bottle.



polavtomatska etiketirka
etiketirka kolut
